Custom IBR Panel Roll Forming Machine Manufacturer, Company

1 / 1

Custom IBR Panel Roll Forming Machine Manufacturer, Company

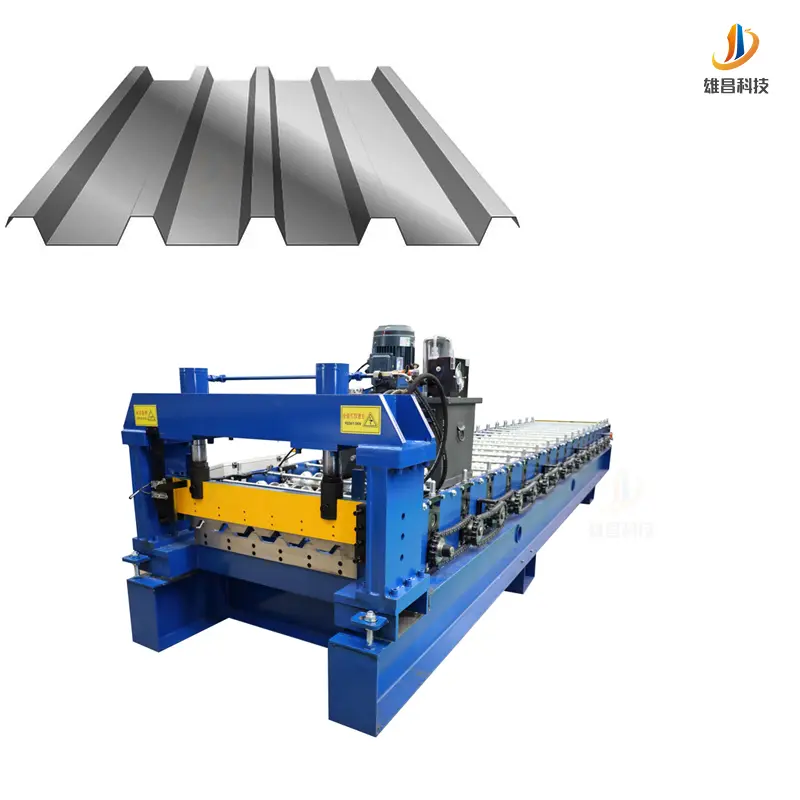

An IBR panel forming machine is a specialized roll forming system designed to produce IBR (Inverted Box Rib) metal roofing sheets from steel coils through a continuous cold roll forming process. The machine gradually shapes flat metal strips into a trapezoidal rib profile with high structural strength and precise dimensions using multiple forming roller stations.

This type of equipment, commonly referred to as an IBR roof roll forming machine, IBR Roof Sheet Roll Forming Machine, or IBR panel former, is widely used for manufacturing durable roofing sheets for industrial buildings, commercial facilities, and large-span steel structures.

Send Inquiry

Product Description

Q: What is the difference between a U panel and a PBR panel?

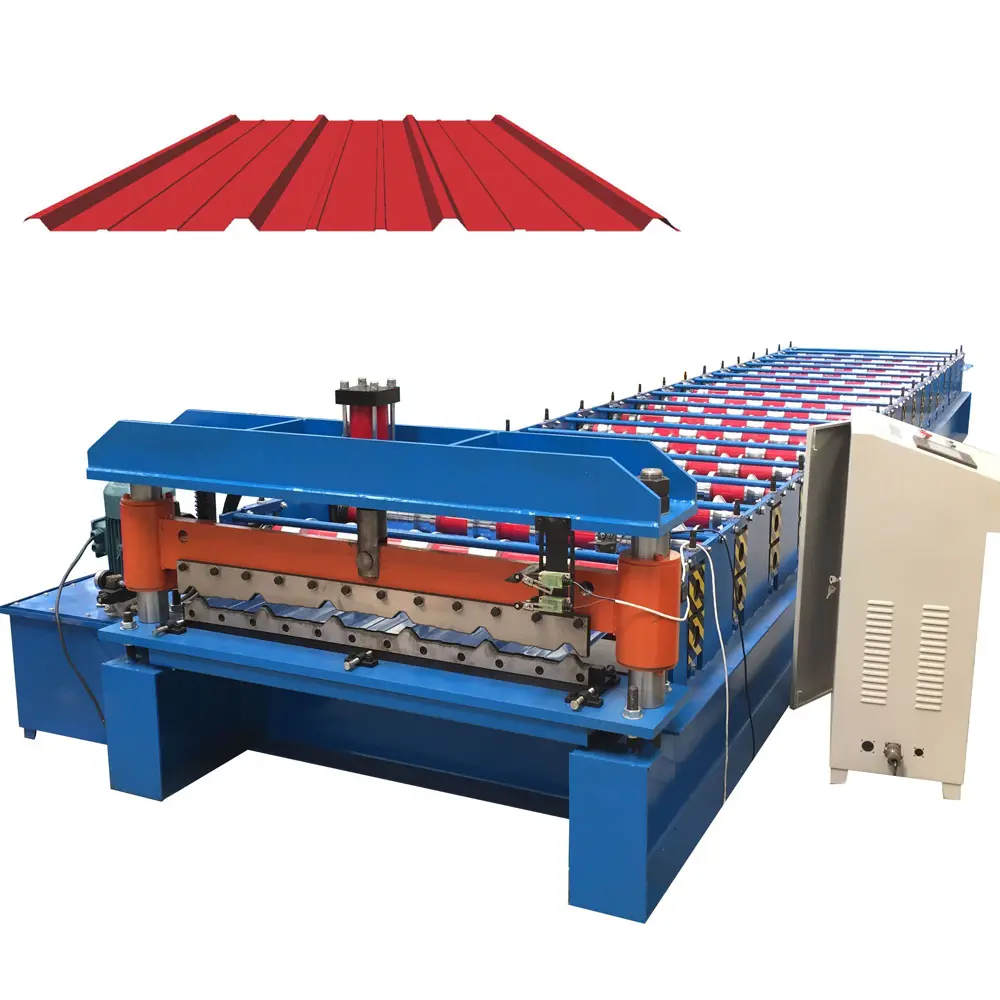

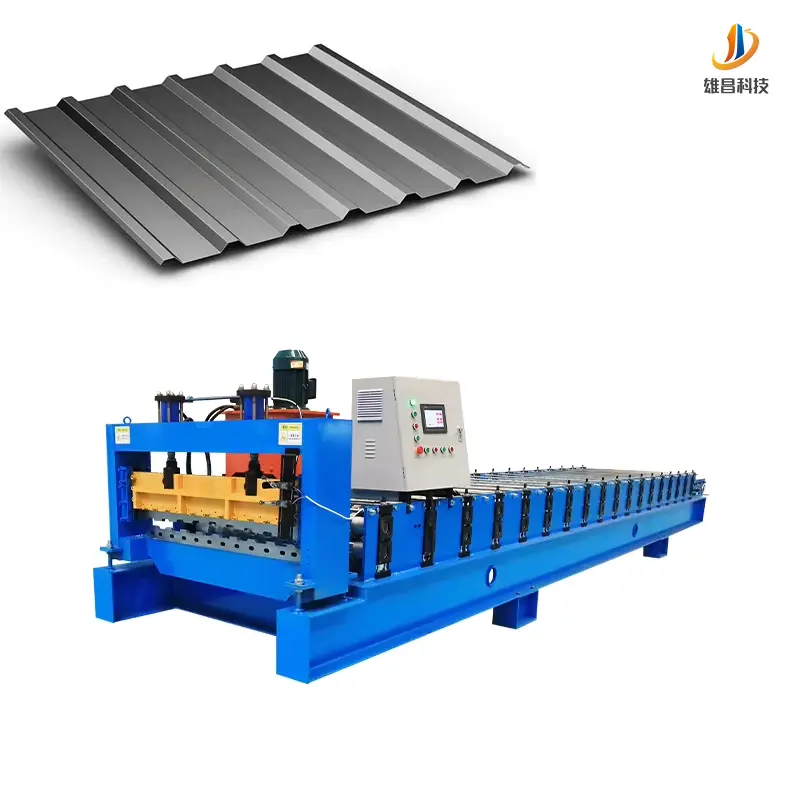

U panels are low-profile panels typically used for architectural utility, interior walls, or light duty roofing. PBR (Purin Bearing Rib) panels have a larger, higher rib profile designed for structural integrity and excellent water-shedding capabilities on low-slope roofs.

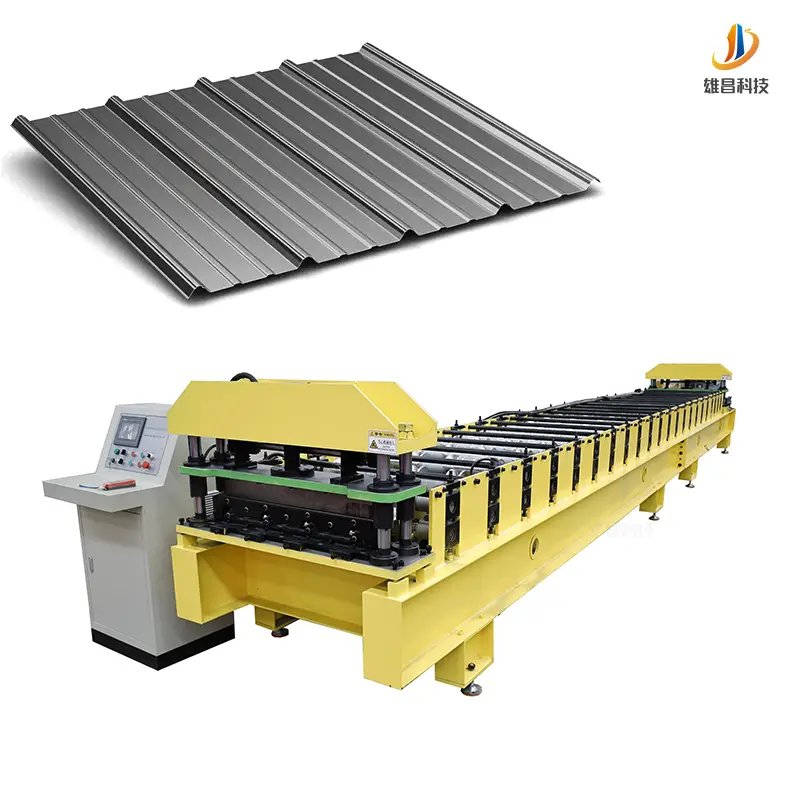

Q: Can one roll forming machine produce both AG panels and PBR panels?

Standard roll forming machines are single-profile because the roller stations are pre-configured to shape a specific design. However, a double-deck roll forming machine can be custom designed to produce both profiles on a single machine body with dual-level styling.

Q: What material thicknesses can these roofing forming machines handle?

Most standard roofing roll forming machines are built to process galvanized steel, galvalume steel, or prepainted steel coils (PPGI) within a thickness range of 0.3 mm to 0.8 mm (approx. 22 to 29 gauge).

Q: How do you ensure the precision and cutting quality of the metal panels?

These machines utilize a high-precision PLC control system alongside a hydraulic post-cut mechanism. The length and quantity of the panels can be programmed, ensuring clean cuts with minimal deformation and tolerance of within ±1mm.

Q: What is the typical production speed of these panel forming machines?

Standard production speed is around 15 to 20 meters per minute (including cutting time). High-speed versions equipped with flying shears or specialized motor controls can achieve even higher outputs.
